Inheritance
Definition-
- Inheritance in Object Oriented Programming can be described as a process of creating new classes from existing classes. New classes inherit some of the properties and behavior of the existing classes. An existing class that is "parent" of a new class is called a base class. ... Inheritance is a technique of code reuse.
Base and derived classes-
- A class can be used as the base class for a derived new class. The derived class inherits all of the properties of the base class. The derived class can add new members or change base class members. ... In a C++ program the OOP paradigm is centered around your class definitions.
Type of inheritance and their implementation-
- In C++, we have 5 different types of Inheritance-
1)Single Inheritance
2)Multiple Inheritance
3)Hierarchical Inheritance
4)Multilevel Inheritance

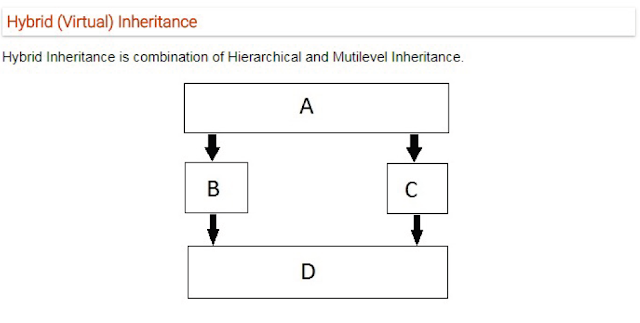

5)Hybrid Inheritance (also known as Virtual Inheritance)
Virtual base classes-
- Virtual base classes (C++ only) Suppose you have two derived classes B and C that have a common base class A , and you also have another class D that inherits from B and C . You can declare the base class A as virtual to ensure that B and C share the same subobject of A .
class A
{
public:
int i;
};
class B : virtual public A
{
public:
int j;
};
class C: virtual public A
{
public:
int k;
};
class D: public B, public C
{
public:
int sum;
};
int main()
{
D ob;
ob.i = 10; //unambiguous since only one copy of i is
inherited.
ob.j = 20;
ob.k = 30;
ob.sum = ob.i + ob.j + ob.k;
cout << “Value of i is : ”<< ob.i<<”\n”;
cout << “Value of j is : ”<< ob.j<<”\n”; cout << “Value
of k is :”<< ob.k<<”\n”;
cout << “Sum is : ”<< ob.sum <<”\n”;
return 0;
}
Abstract class-
- Abstract class is declared in useof base class and contained at least one pure vartual classes.
- An abstract class is a class that is designed to be specifically used as a base class. An abstract class contains at least one pure virtual function. You declare a pure virtual function by using a pure specifier ( = 0 ) in the declaration of a virtual member function in the class declaration.
